In modern fluid control architecture, especially within high-volume process streams like power generation, large-scale water treatment, and petrochemical transfer, the requirements for flow regulation are dual-natured: the valve must respond quickly and powerfully to actuation commands while simultaneously delivering absolute isolation when closed. The Pneumatic Double Eccentric Butterfly Valve is specifically engineered to meet this rigorous demand profile, mastering the balance between rapid, high-torque actuation and tight sealing integrity.
This high-performance design moves beyond traditional center-line valves by incorporating a double offset mounting of the disc relative to the shaft centerline. This crucial geometric feature is the foundation upon which superior performance, longevity, and high-reliability control are built. For process engineers seeking a durable WCB carbon steel wafer valve capable of handling higher pressures and cycling requirements, this design represents the cutting edge of dependable isolation technology.
The core innovation in this product line lies in the double offset—the second and third eccentricity—which radically alters the disc's interaction with the seat throughout its opening and closing cycle.
In a standard (concentric) valve, the disc makes contact with the seat all the way around its circumference from the moment it begins to turn, causing constant frictional wear (drag) on the soft seat material. This drag mandates higher operating torque and drastically shortens the lifespan of the seal.

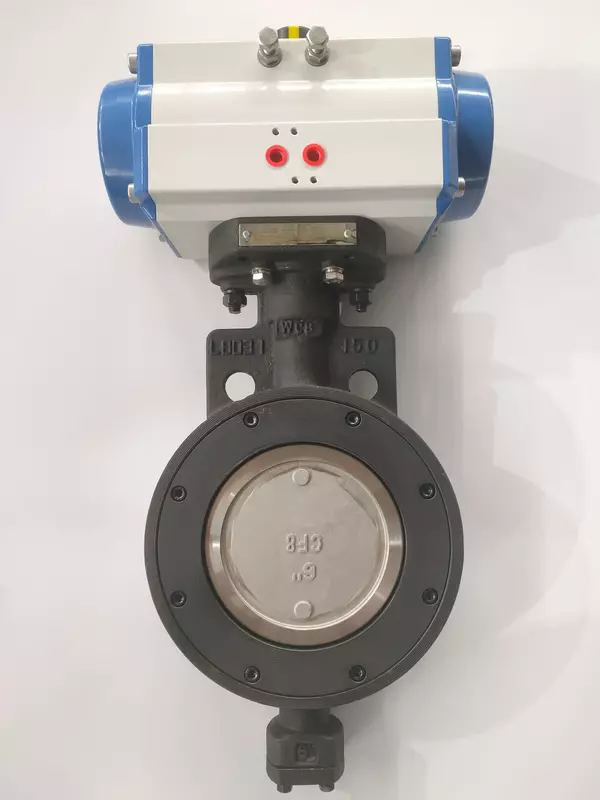

The Pneumatic Double Eccentric Butterfly Valve solves this by designing the disc’s axis to be offset from both the flow centerline and the shaft centerline. This geometry ensures that:
Frictionless Rotation: The disc clears the seat completely and immediately upon initiating movement. This eliminates rubbing friction during the primary rotation phase, preserving the seat integrity.
Positive Engagement: Contact is established only at the final moments of closing, where the disc gently cam-loads into the resilient seat (often made of specialized materials like R-PTFE or PPL for superior temperature resistance). This controlled, high-pressure seating action achieves the desired zero leakage performance without inducing frictional wear during rotation.
This fundamental design difference translates directly into lower maintenance frequency and superior performance reliability compared to continuously rubbing metal-seated or single-offset designs.
The "Pneumatic" designation in the Pneumatic Double Eccentric Butterfly Valve signifies its suitability for automated, high-speed control required in modern distributed control systems (DCS). Pneumatic actuators—powered by compressed air—provide an ideal combination of speed, reliability, and inherent safety for large process valves.
The double-eccentric design, while reducing running friction, still requires substantial force to achieve the final, tight seal against the pipeline pressure—this is where the pneumatic actuator delivers its high-torque advantage.
High Actuation Force: Pneumatic actuators are selected and sized specifically to deliver the necessary torque to overcome the static seating force, ensuring that even in high-pressure service , the valve seats perfectly every time. This guarantees the high torque performance required to maintain bubble-tight integrity against system pressure.
Rapid Response Time: In emergency scenarios, such as emergency shutdowns (ESD) or critical air classification processes, speed is essential. Pneumatic operation offers near-instantaneous response, allowing the valve to move from fully open to fully closed significantly faster than manual or geared electric alternatives, providing crucial process safety assurance.
Fail-Safe Functionality: Pneumatic systems can be readily configured for fail-safe operation (Fail-Open or Fail-Closed) using spring-return mechanisms. This inherent safety feature is a leading requirement in the petrochemical and power generation sectors, protecting assets and personnel in the event of air supply loss.
This pairing of a low-friction closing mechanism with a high-force actuator makes this valve an exceptional choice for high-speed flow regulation.
The choice of body and disc materials for a Pneumatic Double Eccentric High Performance Butterfly Valve is critical, especially when dealing with media in power plants or the petroleum industry where temperatures can range widely (-40°C up to 220°C)..
Our standard offering utilizes robust, time-tested materials tailored for industrial longevity:
Body Material: Utilizing WCB Carbon Steel provides excellent structural strength and cost-efficiency for general service, while still offering reliable performance within specified temperature limits. For more aggressive chemical environments, versions constructed with Stainless Steel (SS304, SS316) are available to resist external and atmospheric corrosion.
Disc Material: The disc, which undergoes significant stress and contact during actuation, is typically manufactured from high-strength alloys like CF8 or CF8M stainless steel. This choice ensures dimensional stability and resistance to flow-related erosion or minor chemical exposure that might occur during the brief period the disc is engaging the seat.
Seat Technology: The selection of the resilient sealing ring—often high-performance R-PTFE or PPL—is paramount. These materials are selected to withstand the maximum rated temperature while providing the necessary elasticity for that controlled, high-torque seating action, ensuring the valve remains a reliable high-performance butterfly valve for throttling and isolation duties.
The market for this type of valve is expanding beyond traditional power applications due to its high performance and low lifecycle cost.
In power plants, particularly those utilizing natural gas or handling boiler feed water, rapid on/off capabilities are essential for turbine bypass, cooling water control, and boiler blowdown. The ability of the Pneumatic Double Eccentric Butterfly Valve to cycle quickly and maintain tightness under high pressure makes it the preferred carbon steel butterfly valve solution for these critical utility functions.
In refineries and chemical complexes, these valves excel in services involving moderate to high-pressure gases or non-slurry liquids. They offer precise throttling capability (due to the inherent design allowing for effective flow modulation across the stroke) while providing the assurance of a tight seal needed for safe hydrocarbon handling or chemical isolation. The wafer design further streamlines installation by fitting compactly between flanges, saving valuable space in crowded process skids.
The Pneumatic Double Eccentric Butterfly Valve represents the zenith of high-performance valve technology for demanding industrial isolation and control. By meticulously engineering out the friction points of traditional designs and pairing this mechanical advantage with the powerful, rapid response of pneumatic actuation, we deliver unparalleled reliability, verifiable zero leakage, and a significantly lower Total Cost of Ownership.
Ensure your critical flow paths are protected by engineering excellence. To access detailed flow characteristics, discuss customized material configurations (including various alloy discs or specialized seat compounds), or begin the process of sourcing your next zero-leakage solution, please contact our dedicated sales engineering team immediately.
