Have you ever wondered if a swing check valve works in a vertical pipe? Installing it the wrong way can lead to backflow or system failure.In this post, you'll learn if vertical installation is safe, what risks it brings, and better alternatives. As a trusted manufacturer, Aidele Valve Co., Ltd offers expert insight into proper swing check valve usage and provides high-quality valve solutions designed to meet diverse installation needs.

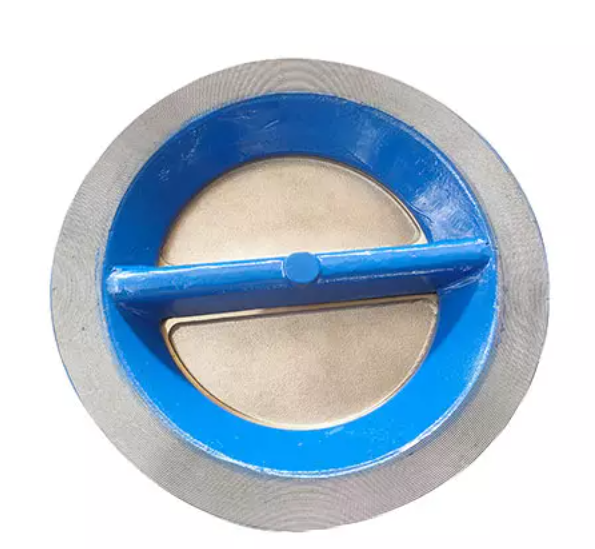

A “swing check valve” is a type of one-way valve used to control fluid direction. It’s designed to stop reverse flow in a pipeline by using a hinged disc.
When water or fluid flows forward, the disc inside the valve swings open. As soon as flow stops or reverses, gravity or backpressure pushes the disc closed. This simple action prevents backflow and keeps systems safe.
Swing check valves are common in:
Residential plumbing: to stop water from flowing back into fixtures.
Irrigation systems: to protect pumps and pipes from reverse flow.
Pump discharge lines: often found just after a pump to protect it.
Industrial pipelines: used in larger systems where flow conditions are steady.
Feature | Swing Check Valve |
Flow Direction | One-way (unidirectional) |
Closure Mechanism | Hinged disc or flap |
Installation Position | Usually horizontal (some vertical cases) |
Best For | Steady, high-volume flow systems |
Installing a swing check valve vertically sounds simple, but it’s not always the best choice. Here’s what you need to know before deciding.
What Most Manufacturers Recommend
Not all swing check valves are designed for vertical use. Some manufacturers allow it—but only if the flow moves upward. Others warn against vertical installation completely. Always check the technical specs or installation guide before you begin.
Industry Best Practices
Standard practice favors "horizontal installation". Why? Because gravity helps the disc swing back into the seat when flow stops. This natural motion ensures reliable sealing and fewer failures.
Flow Direction Requirements
If you install the valve vertically, flow "must" go upward. Downward vertical flow will not close the disc properly. That allows reverse flow, defeating the valve’s purpose.
Potential Problems
Gravity may hold the disc open in low-pressure conditions.
If the fluid isn’t strong enough, the disc won't return to its seat.
Inconsistent flow can make the disc bounce or flutter.
Common Failures
Chattering: The disc rapidly opens and closes, creating noise and wear.
Incomplete closure: The valve leaks or allows backflow.
System strain: Irregular flow damages pumps or connected equipment.
Modified Swing Check Valves
Some swing check valves are"spring-assisted". The spring helps the disc return to the seat even in vertical upflow. These are designed to fix the closure issues seen in standard swing valves.
Use of Spring-Loaded Check Valves Instead
For most vertical piping situations, a "spring-loaded in-line check valve" works better. It closes reliably in any orientation—horizontal, vertical up, or even vertical down. That makes it a safer and more efficient option for compact or high-performance systems.
Feature | Standard Swing Check Valve | Spring-Loaded Check Valve |
Suitable for Vertical Use | Sometimes (upward only) | Yes (any direction) |
Closure Mechanism | Gravity-based swinging disc | Spring-assisted poppet |
Prone to Chatter in Vertical | Yes | No |
Maintenance Needs | Moderate | Low |
How and where you install a swing check valve can change how well it works. Let’s look at the difference between vertical and horizontal setups.
How It Works Best
In a horizontal line, the valve disc swings open as flow begins. When flow stops, gravity naturally helps the disc fall back into place. This ensures full closure with minimal effort.
Benefits
Reliable sealing: Gravity ensures the valve shuts completely.
Less backflow: The design reduces the chance of reverse flow.
Longer lifespan: Less wear due to smooth operation and fewer internal collisions.
When It Can Work
Vertical installation is only acceptable when the flow direction is "upward". And the system must provide "enough pressure“ to fully open and close the disc.
Risks
The disc may not close completely if flow pressure is too low.
If water flows downward, the valve won’t work properly.
There's a higher chance of chattering, leaks, or valve failure.
Situations to Avoid
Low-pressure systems: These may not push the disc closed.
Dirty or debris-filled systems: The disc can stick or stay open.
Frequent flow changes: They can make the disc flutter, causing wear or noise.
Feature | Horizontal Install | Vertical Install (Upflow) |
Sealing reliability | High | Moderate |
Backflow protection | Excellent | Variable |
Common in specs | Yes | Sometimes (check first) |
Risk of valve failure | Low | Higher |
If a swing check valve doesn’t suit your vertical piping setup, don’t worry—there are better options. Some valves are made specifically to perform well in vertical systems.
How They Work
These valves use a "spring-loaded disc or poppet". The spring forces the valve shut when flow stops, no matter the pipe's orientation.
Advantages Over Swing Types
Any-direction use: Ideal for vertical, horizontal, or even angled piping.
Fast response: Closes instantly, reducing water hammer and backflow.
Works in low pressure: Doesn’t rely on gravity like swing check valves.
Feature | Swing Check Valve | Spring-Loaded Valve |
Gravity-dependent | Yes | No |
Suitable for vertical use | Limited | Yes (all directions) |
Closing speed | Slower | Fast |
Chatter resistance | Low | High |
Application in Vertical Systems
Lift check valves are designed to work in "vertical upflow systems". The disc lifts when fluid flows up and falls back into place when it stops.
Limitations
Fluid compatibility: Not good with thick or debris-filled liquids.
Installation limits: Must be perfectly aligned to function properly.
Maintenance: The disc and seat can wear out faster if debris is present.
Spring-loaded valves are:
Compact: Fit tight spaces where swing valves won’t.
Reliable: Close fully and quickly to prevent leaks or water hammer.
Orientation-friendly: Ideal for vertical or angled systems with fluctuating flow.
They’re widely used in HVAC, water treatment, and pump discharge lines—especially where swing valves may fail or wear out quickly.
Even when properly installed, swing check valves can face a few issues. Understanding these problems helps keep your system running smoothly.
● Llow fluctuations: Rapid changes in flow can cause the disc to bounce.
● Incorrect orientation: Vertical installs without enough pressure may leave the disc unstable.
● Low pressure: Not enough force to keep the disc fully open or closed.
● Switch to spring-loaded: These valves handle low and fluctuating flow better.
● Adjust the flow rate: Ensure consistent pressure to stabilize disc movement.
● Check for correct positioning: Make sure the valve is installed according to spec—horizontal for swing types.
● Incomplete closure: The disc may not seal if installed in the wrong direction.
● Debris in the valve: Dirt or buildup can block the disc from seating properly.
● Inspect for debris: Shut off the system, open the valve, and clean the internal parts.
● Verify flow direction: Look for the arrow on the valve body—install it with the arrow matching your flow.
● Check seat wear: A worn valve seat won’t seal tightly. Replace the valve if needed.
Problem | Likely Cause | Recommended Fix |
Chatter or noise | Low flow, vertical install | Switch to spring-loaded valve |
Incomplete closure | Debris or incorrect orientation | Clean valve, confirm flow direction |
Continuous backflow | Low pressure or worn seat | Increase pressure or replace valve |
Swing check valves work best when installed horizontally. Vertical use only works in specific upward flow situations.
Always check manufacturer specs. In vertical setups, spring-loaded valves are often more reliable.
Choose the right valve for your system to avoid failure, noise, or backflow problems.
Q: Can I install a swing check valve in a vertical pipe?
A: Yes, but only for upward flow and if the valve is approved for vertical use.
Q: What happens if I install a swing check valve in vertical downflow?
A: It likely won’t seal. Backflow, noise, or valve failure can occur.
Q: What’s the best type of check valve for vertical piping?
A: Spring-loaded or in-line check valves work best in vertical systems.
Q: How do I know if my swing check valve is compatible with vertical installation?
A: Review the product specs or manufacturer’s guide for vertical use approval.
