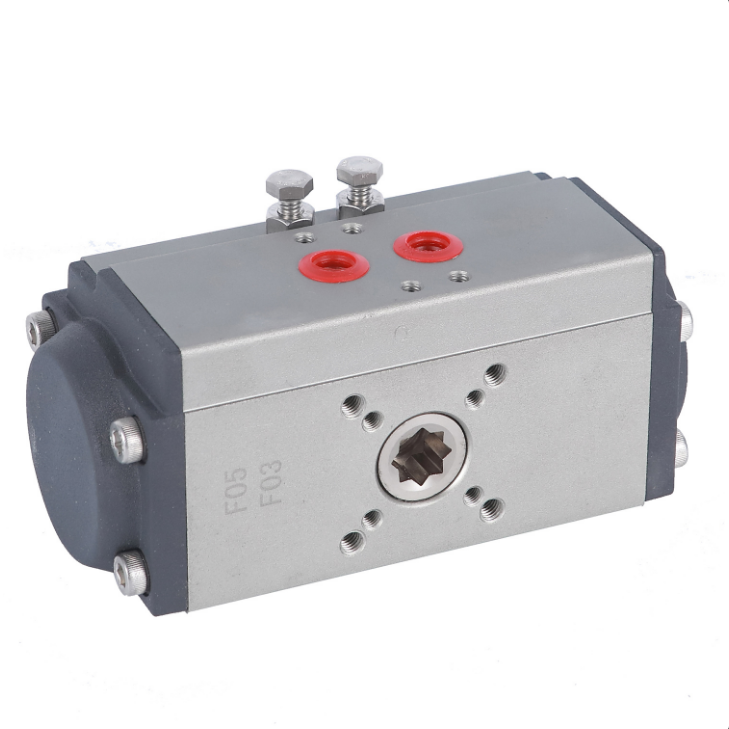

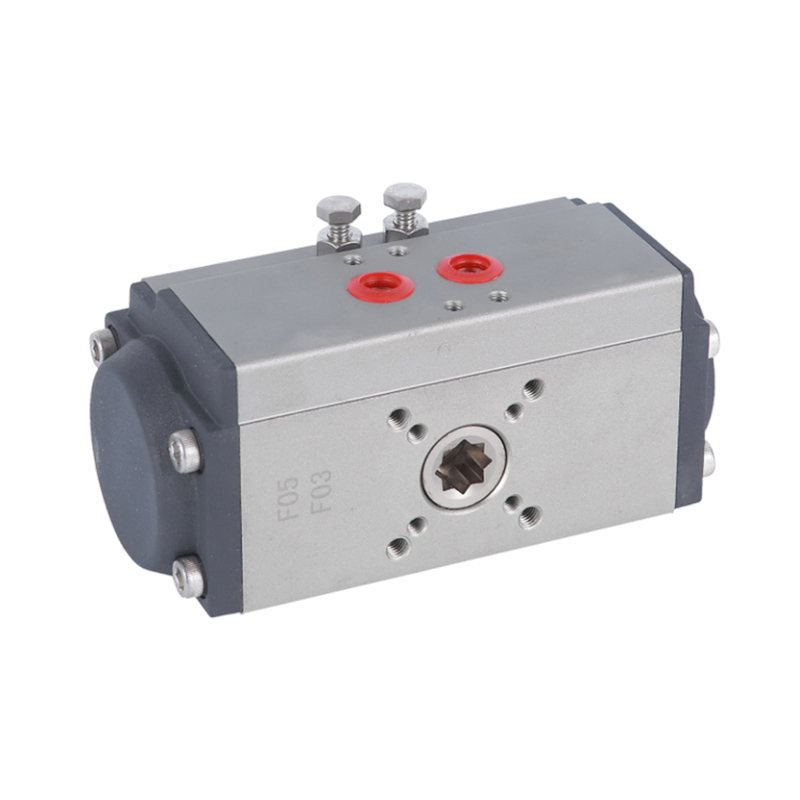

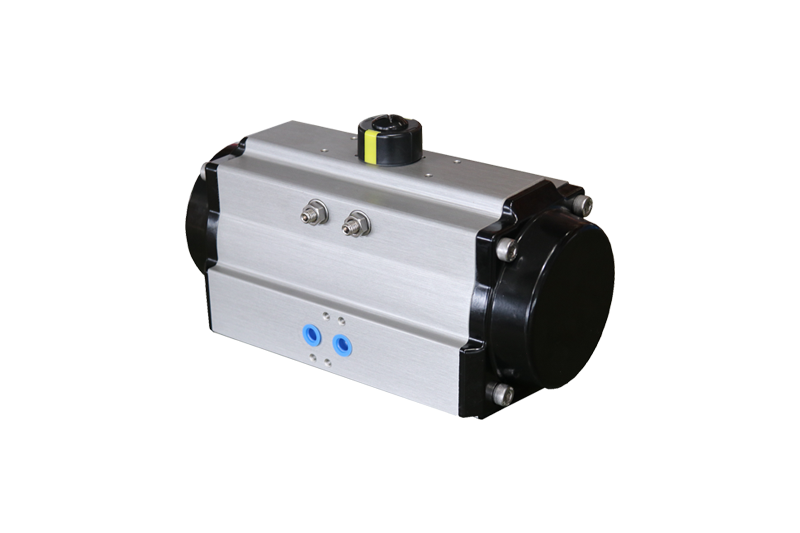

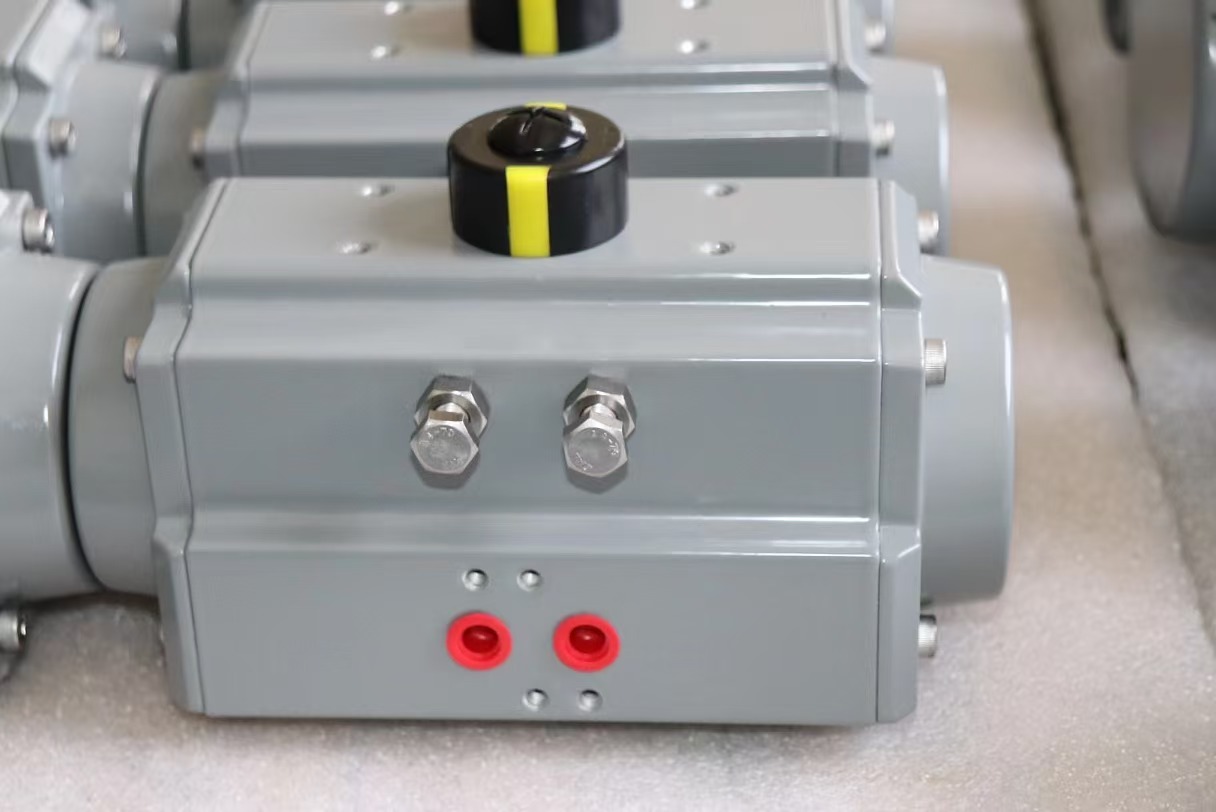

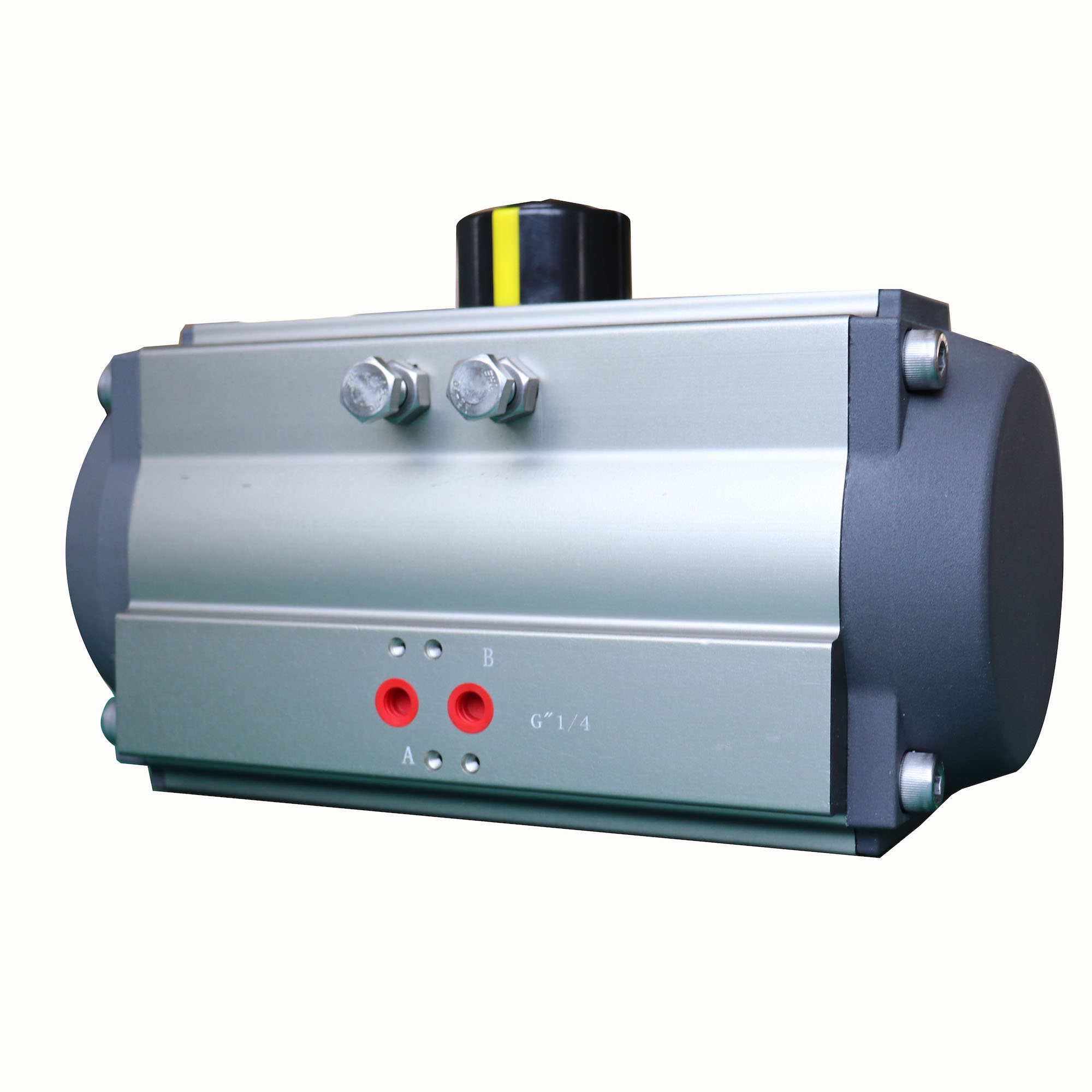

AT series pneumatic actuators

DA (Double-Acting) and SR (Spring-Return) pneumatic actuators are primarily used for the automatic control of ball valves and butterfly valves.

The XM series pneumatic actuators feature a unique design, advanced technology, precision manufacturing, and an economical compact structure. They can be directly equipped with other accessories to enhance efficiency and cost-effectiveness.

General Data

Maximum rated air pressure: 8 bar; minimum: 2.5 bar.

Operating temperature:

Standard temperature: -20°C (-4°F) to 80°C (+176°F);

High temperature: -15°C (+5°F) to 150°C (+302°F);

Low temperature: -40°C (-104°F) to 80°C (+176°F).

Air supply: Clean, dry, filtered, or lubricated air, free from corrosive gases.
